Creating a Conference System in Twilio

Twilio’s documentation is very useful in showing some of the possible applications of their telephony system. For example, they have a guide that walks you through the steps involved in setting up a conference call:

That guide is great in showing how to setup a singular conference call, and can be easily extended to create an entire conference system.

State Machine Design

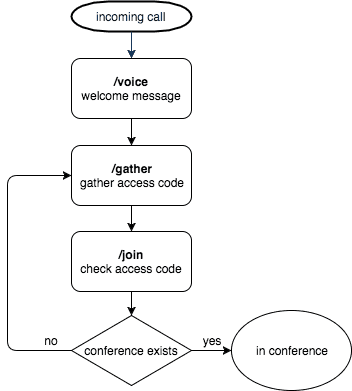

Conference systems, like many phone systems, can be represented as simple state machines. This one in particular has just a few steps:

Application Implementation

Twilio’s guide introduced the concept of the TwiML verbs <Dial> and <Conference> to actually join the conference. To implement our system’s state machine, were going to use a few more:

When the system receives a phone call, the caller should hear a greeting, letting them know they reached the right number.

app.post('/voice', (request, response) => {
  const twiml = new VoiceResponse();
  twiml.say('Welcome to the conference system.', {
    voice: 'alice'
  });
  twiml.redirect('/gather');
  response.send(twiml.toString());
});

After we say welcome (in the friendly “alice” voice), we redirect to the route that gathers the access code.

app.post('/gather', (request, response) => {
  const twiml = new VoiceResponse();
  const gather = twiml.gather({
    timeout: '10',
    finishOnKey: '#',
    action: '/join'
  });
  gather.say('Please enter your access code.', {
    voice: 'alice'
  });
  twiml.redirect('/gather');
  response.send(twiml.toString());
});

One notable thing about this route is the placement of this .say() verb. Placing it inside of the .gather() verb means that the caller can begin entering digits as soon as they hear the instructions. Placing the .say() before the .gather() verb would mean the caller must wait until the instructions are finished before any input is registered. This can be a frustrating experience.

After the system gets the caller’s digits, we redirect to the /join route.

app.post('/join', (request, response) => {
  const twiml = new VoiceResponse();
  const conference = conferences(request.body.Digits);
  if (conference) {
    twiml.say('You are now entering the conference.', {
      voice: 'alice'
    });
    const dial = twiml.dial();
    dial.conference(conference);
  } else {
    twiml.say('The access code you entered is incorrect.', {
      voice: 'alice'
    });
    twiml.redirect('/gather');
  }
  response.send(twiml.toString());
});

This route is where we’ll verify that the user’s access code is actually valid. In this example, we’ve hardcoded the conferences, and thus the check is trivial:

const accessCodes = {
  123: 'conference 1',
  456: 'conference 2'
};
module.exports = function(code) {
  return accessCodes[code];
};

If the access code is valid, conference will contain the name of the conference we’ll pass into the .conference() verb, thus joining the conference. If it’s not valid, we redirect back to the /gather route, after alerting the caller that the code they entered is wrong.

Going Further

We showed how to easy it is to setup a robust, full-fledged conference system, and it may be easy enough to integrate these web routes into your existing application. You can take this example further by customizing the instructions (recording your own voice, changing the language of the instructions based on the caller’s phone number), or giving room information (such as saying the room name or announcing how many people are currently in the room).

Additionally, one of the requirements of any robust phone system is reliability and uptime. Ideally your applications never crash or otherwise become unresponsive, but in reality this can happen at any time. One of the ways to mitigate this concern is to move your phone system to a completely separate application. Because of the on-demand nature of call handling, serverless functions, such as AWS Lambda, are an ideal candidate to handle incoming phone requests. Combined with AWS API Gateway, you can create an extremely reliable, and practically infinitely scalable phone system.

All code can be found here.
